Inner Flexible Construction Aluminium Aluminium
Nominal Thickness of Inner D. 74 micron 55 micron
Outer Barrier Construction Aluminium Aluminium
Nominal Thickness of Outer J. 45 micron 45 micron
Insulation 25/50 mm glass wool, 16 kg/m�³ 25/50 mm glass wool, 16 kg/m�³
Diameter Range 82 mm - 508 mm 82 mm - 508 mm
Temperature Range -30�ºC / +150�ºC -30�ºC / +250�ºC
Air Velocity 30 m/s (Max.) 30 m/s (Max.)
Operation Pressure 3000 Pa (Max.) 3000 Pa (Max.)
Standard Length 10 m. 10 m.
Packing Single cardboard box Single cardboard box
Fire Certificates CSTB M1 (FRANCE) CSTB M0 (FRANCE) (inner duct)
CSI Class-1 (ITALY) MPA 6Q3(SWITZERLAND)(inner duct)
CSTB M1 (FRANCE) (outer jacket)
CSI Class-1 (ITALY) (outer jacket

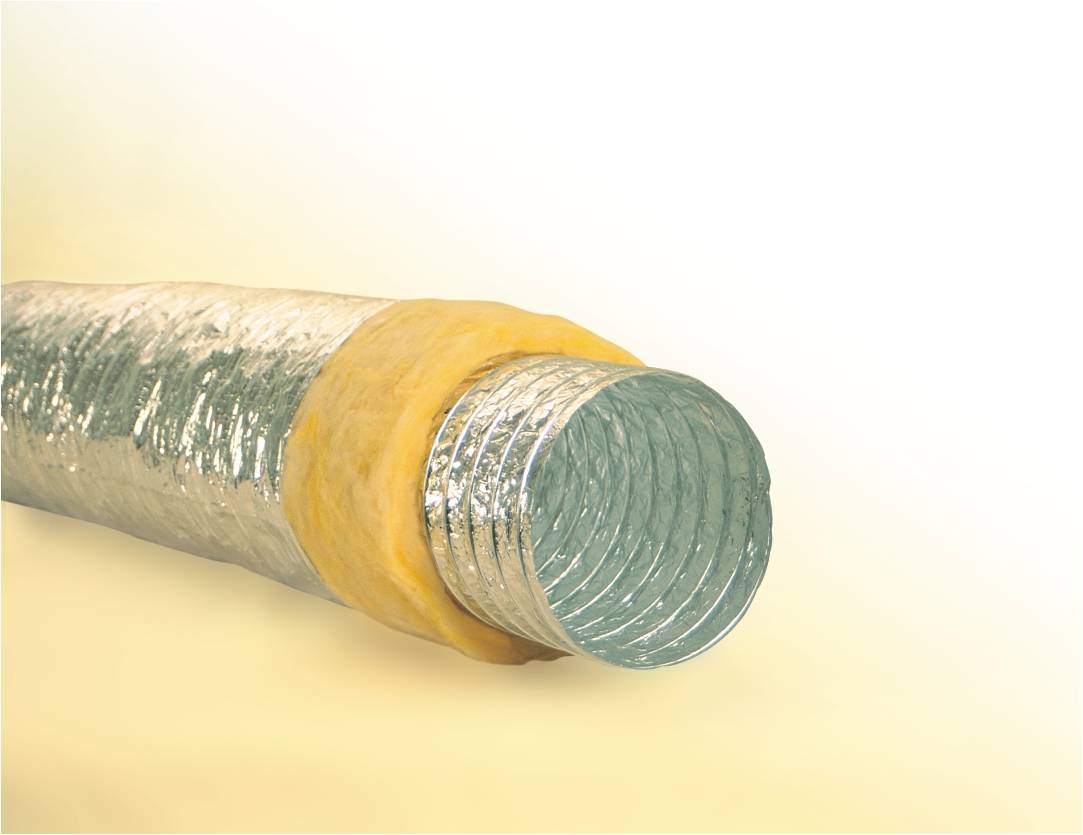

- tubulatura flexibila aluminiu izolata
