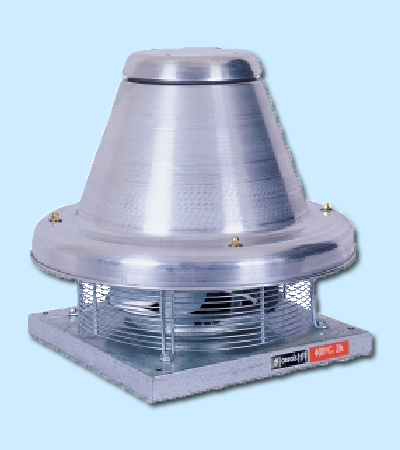

VENTILATOARE tip TURALA CASALS
GENERAL FEATURES:
Range with 5 sizes from the 47 until the 70,
provided with three phase 2 pole motors. Air- flow from 450 m3/h until 1.700 m3/h. Static
pressures until 950 mmwg. Maximum air working temperature 1302C.
MANUFACTURING FEATURES:
) Rolled steel sheet housing.
) Fully welded housing.
) High efficiency single inlet backward curved
impeller, manufactured of CAST ALUMINIUM.
) Epoxy powder coat finishing.
) Squirrel cage asincronous standard motor, IP-
55 protection and rated class F insulation.
Standard voltages 230/400V 50Hz, motors up
to 5, 5HP and 400/690V 50Hz for higher powers.
APPLICATIONS:
) Specially designed for duct assembly, are
suitable for:
) Automatic iron machinery.
) Air injection in burners, ovens, Jacuzzis...
) Smoke exhaust.
) Industrial processes.
) Clean air and light dusty air transport.
UNDER REQUEST:
) 60Hz fans and special voltages.
) 2 speed motors.
) Flame proof or explosion pro
